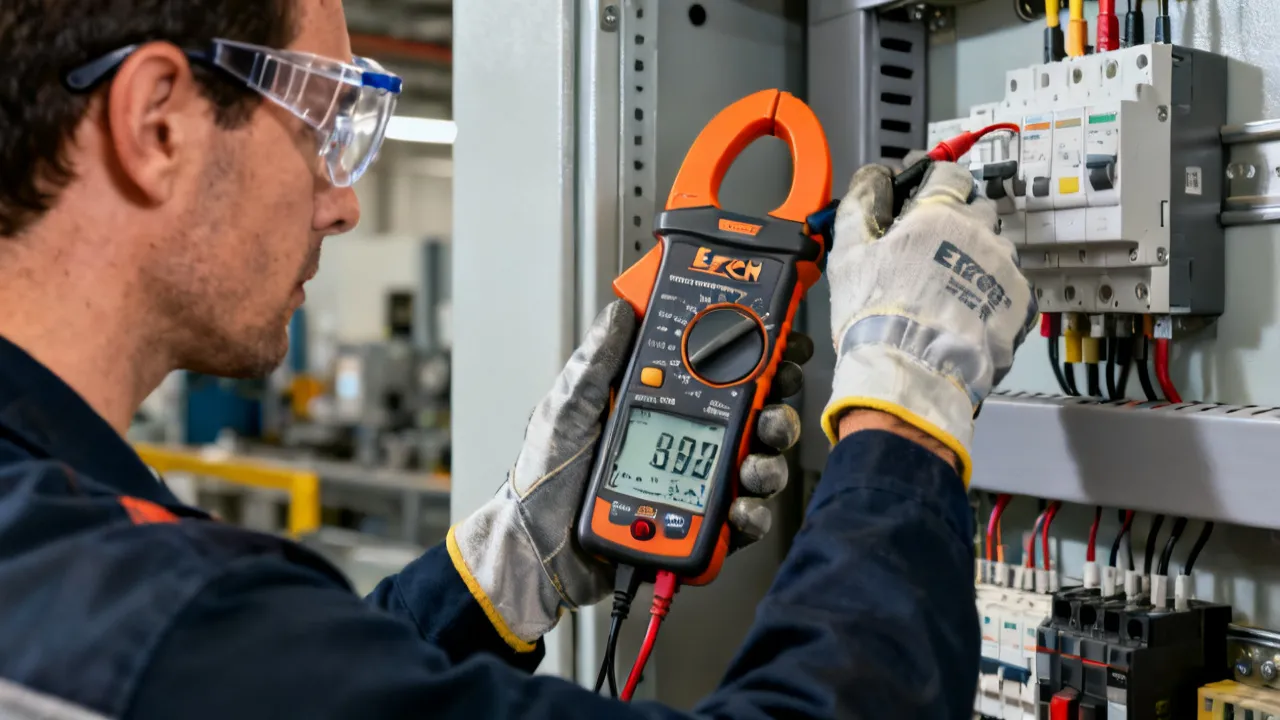

This guide explains how the Extech EX900 clamp meter supports current measurement, troubleshooting, maintenance, and electrical verification. The instrument is generally associated with True RMS AC/DC current measurement, clamp-based testing, voltage checks, resistance, continuity, frequency, capacitance, temperature, and related functions, subject to the exact model documentation and accessories. Readers will learn how to select functions, interpret readings, apply safe testing practices, and assess whether the meter suits professional or maintenance work.
The Extech EX900 is a multifunction clamp meter intended for technicians who need to measure electrical current without disconnecting a conductor. Its central design advantage is the current clamp: instead of placing the meter in series with a circuit, the user positions the jaw around an individual conductor and reads the resulting measurement on the display. This approach can make diagnostic work more efficient, particularly when testing distribution equipment, motor circuits, building services, battery systems, and industrial machinery.
Unlike a conventional multimeter used for current measurement, a clamp meter can often be applied while the circuit remains operational. This allows the technician to observe a system under its normal working load rather than testing only an isolated or partially disconnected condition. That distinction is important when investigating intermittent faults, motor starting behavior, changing loads, heating equipment, or systems controlled by automation.
The instrument is commonly identified as a True RMS AC/DC clamp meter with a current range associated with high-amperage electrical work. Depending on the production version, included accessories, and the applicable manual, the Extech EX900 may also support measurements such as AC and DC voltage, resistance, continuity, diode testing, capacitance, frequency, duty cycle, temperature, and inrush current. Users should confirm the exact specifications printed on their instrument and supplied documentation before relying on any particular range or feature.
Different versions of an instrument can have similar model names while differing in included probes, firmware behavior, accuracy statements, or available functions. A product listing, an older manual, or a third-party description may not accurately represent every individual unit. The markings on the meter, the official documentation, and the ratings of the supplied accessories should therefore be treated as the controlling sources.
From an industry perspective, the very important question is not whether a clamp meter has a long feature list. The practical question is whether it can produce a suitable reading for the circuit under examination while preserving operator safety. A meter may offer extensive functionality, yet still be unsuitable for a particular installation if the measurement category, current range, jaw opening, conductor arrangement, or environmental conditions do not match the task.
The Extech EX900 is best viewed as a general-purpose troubleshooting and maintenance instrument rather than a substitute for every specialist test tool. It can help identify abnormal current draw, verify supply voltage, compare phases, investigate motor behavior, and perform basic component checks. More specialized work—such as insulation resistance testing, earth resistance testing, power-quality analysis, high-frequency waveform analysis, or formal protective-device testing—requires equipment designed specifically for those purposes.
Traditional current measurement with a multimeter usually requires the circuit to be opened and the meter connected in series. That procedure can interrupt equipment operation and introduce additional risks if the meter is connected incorrectly. A clamp meter measures the magnetic field surrounding a conductor, allowing the circuit to remain intact during many current checks.
For AC current, the changing magnetic field around the conductor is detected by the clamp’s sensing system. For DC current, the instrument must detect a steady magnetic field as well, which requires a different sensing method and careful zeroing. This distinction explains why DC current measurements can be more sensitive to jaw position, nearby magnetic fields, residual magnetism, and zero-offset errors.
In a single-phase circuit, the clamp should normally surround only one current-carrying conductor. If the live and return conductors are enclosed together, their magnetic fields may oppose one another, producing a reading that is near zero or otherwise misleading. The same principle applies to multi-conductor cables: the user must understand the circuit arrangement before interpreting the display.
This is one of the most common sources of incorrect clamp-meter readings. The instrument may be functioning normally while the measurement setup is wrong. Professional troubleshooting begins with circuit identification, conductor selection, and confirmation that the jaw is completely closed around the intended conductor.
Conductor position can also matter. A conductor placed near the edge of the jaw may produce a slightly different result than one centered in the opening, especially when measuring low currents or DC current. For repeatable comparisons, use the same position each time. If the conductor is large, rigid, or difficult to access, do not force the clamp into a position that could damage the jaw or disturb the installation.
Clamp measurement is also valuable because it reduces the need to disturb connections. Disconnecting a conductor can loosen terminals, alter the circuit, introduce a poor reconnection, or create an unintended arc. Non-invasive measurement does not remove all hazards, but it can reduce unnecessary circuit manipulation when used correctly.
Current measurement is the primary reason many technicians consider the Extech EX900. A high-current clamp meter can be useful for checking feeders, motor loads, battery systems, power supplies, heating equipment, and service panels, provided the conductor fits within the jaw and the circuit remains within the meter’s documented limits.
AC current readings can help reveal whether a load is operating near its expected level. For example, a motor drawing substantially more current on one phase than the others may warrant further investigation. Possible causes include mechanical loading, supply imbalance, winding problems, connection faults, or measurement error. A clamp reading alone does not establish the cause; it is an initial diagnostic observation that should be combined with voltage measurements, equipment documentation, and appropriate testing procedures.
DC current measurement is relevant to battery banks, automotive systems, solar-related equipment, control circuits, and electronic power systems. Before measuring DC current, the user should select the correct function and perform any zeroing procedure required by the instrument. The jaw should be closed fully, and the conductor should be positioned consistently within the opening. If the reading changes when the jaw is moved around the same conductor, the user should investigate positioning, external magnetic influence, residual magnetism, or a possible instrument issue.
Current readings should be interpreted alongside load conditions. A refrigeration compressor, pump, heater, or variable-speed motor may not draw the same current continuously. A reading taken during startup, idle operation, acceleration, full load, or a control-system pause can differ substantially. The technician should note what the equipment was doing at the moment of measurement.
When comparing parallel conductors, phases, or similar machines, use a consistent method. Measure each phase under the same operating conditions and record the values rather than relying on memory. A small difference may be normal, while a large or increasing difference may justify additional testing.
True RMS technology is significant when a circuit contains non-sinusoidal current or voltage. Modern electrical systems frequently include variable-speed drives, switch-mode power supplies, LED drivers, battery chargers, and other electronic loads. These devices can distort the waveform, meaning that a basic averaging meter may not represent the effective heating value of the signal accurately.
A True RMS meter is designed to calculate the root-mean-square value of suitable AC signals over its specified bandwidth and crest-factor limits. It is not automatically a power-quality analyzer, and it does not identify every type of waveform distortion. Nevertheless, True RMS capability can provide a more meaningful reading than average-responding technology in many practical maintenance situations.
Users should still consult the manufacturer’s stated accuracy, frequency range, crest-factor limitations, and response characteristics. A True RMS label should be interpreted as one part of the meter’s specification, not as a guarantee of accuracy for every electrical waveform.
For example, a switching power supply may draw current in short pulses rather than as a smooth sine wave. A conventional meter may understate the effective current, while a True RMS meter may provide a more useful value. However, if the waveform has extreme peaks, a frequency outside the rated range, or significant high-frequency components, the measurement may still require specialist equipment.
The Extech EX900 can be used for AC and DC voltage checks when the selected function, test leads, and measurement category are appropriate. Voltage measurement is often performed before current testing because it confirms whether the circuit is energized and helps establish the expected operating conditions.
When measuring voltage, connect the test leads in parallel with the points being tested. Begin with the highest suitable range if the expected voltage is uncertain, then select a lower range only when it is safe and useful to do so. Avoid touching exposed metal probe tips, and keep fingers behind the probe guards.
Voltage readings should be assessed against equipment nameplates, circuit diagrams, manufacturer instructions, or applicable electrical documentation. A measured value that appears unusual may result from a true supply problem, a loaded-circuit condition, a neutral issue, a reference-point error, or an unsuitable measurement method.
Before trusting a voltage reading, verify that the test leads are inserted into the correct input terminals and that the rotary selector is set to a voltage function. Many meter accidents result from leaving a lead in a current terminal and then attempting to measure voltage. The instrument’s input configuration should be checked before every measurement, particularly when moving between current and voltage tests.
Resistance and continuity functions are valuable for de-energized circuits. They can help identify an open conductor, a closed switch, a blown fuse, or a connection with unexpected resistance. However, resistance testing on an energized circuit can damage the meter and create a hazardous condition.
Before selecting resistance or continuity, isolate the equipment from its energy source and verify the absence of voltage with an appropriate procedure. Stored energy in capacitors and other components must also be considered. A continuity tone confirms that the measured resistance is below the instrument’s threshold; it does not prove that a conductor is suitable for carrying its rated current.
For low-resistance connections, lead resistance and contact quality can influence the result. Clean probe contact, stable pressure, and repeated measurements can improve confidence. If a connection is suspected of overheating, visual inspection, thermal assessment, and torque verification may be needed in addition to resistance testing.
Continuity testing is best understood as a quick screening function. It can show that two points are electrically connected under low test current, but it may not reveal a high-resistance joint that fails only when substantial current flows. A connection can pass a continuity test and still become dangerously hot under load. For that reason, continuity should not be presented as proof that a complete circuit is safe or fully functional.
If the specific Extech EX900 version includes diode testing, the function can assist with basic checks of semiconductor junctions. A diode test generally applies a small test current and displays the forward voltage or an indication of an open or shorted condition. The component should be isolated as much as practical because parallel circuit paths can affect the result.
Diode testing is useful for preliminary troubleshooting, but it is not a complete semiconductor analysis. It does not necessarily reveal failures that occur only under load, at elevated temperature, or at higher reverse voltage. Devices such as power transistors, bridge rectifiers, and circuit modules may require dedicated test methods.
Capacitance measurement can assist with basic checks of capacitors used in motors, power supplies, lighting systems, and control equipment. The component should be disconnected from the circuit whenever practical, and it must be discharged safely before testing. A capacitor can retain a dangerous charge even after equipment has been switched off.
A capacitance reading outside the component’s tolerance may indicate deterioration, but the result should be interpreted carefully. In-circuit measurements can be affected by parallel components, leakage paths, semiconductor devices, and wiring. For critical applications, a dedicated component tester or manufacturer-approved diagnostic process may provide more reliable information.
Motor-run and motor-start capacitors deserve particular caution. Their nominal capacitance may appear correct while their leakage, equivalent series resistance, or performance under operating voltage is abnormal. If a motor hums, struggles to start, trips protection, or draws unusual current, capacitance measurement can be one part of the investigation, but it should not be the sole basis for replacing or approving the component.
Frequency measurement can help verify AC supply conditions, generator output, inverter signals, and selected control circuits. Duty-cycle measurement may be useful when examining pulse-based signals, provided that the signal lies within the instrument’s supported range and waveform requirements.
These functions should not be confused with oscilloscope analysis. A frequency value does not show waveform shape, transient behavior, noise, ringing, or distortion. If a control system is malfunctioning despite an apparently correct frequency, an oscilloscope or specialized analyzer may be necessary.
When measuring a control signal, confirm the signal reference and avoid accidentally shorting a low-voltage circuit to ground through the probes. Some electronic systems use floating outputs or fast switching edges that are not suitable for an ordinary handheld meter. The meter may display a plausible number while missing short interruptions or irregular pulses.
When supplied with a compatible temperature probe, the Extech EX900 may support temperature measurement. This can help with equipment surveys, motor housings, electrical enclosures, air-conditioning systems, and process checks. The exact probe type and temperature range must be confirmed in the instrument documentation.
Temperature measurement with a contact probe depends on thermal contact, stabilization time, surface condition, airflow, and emissivity when infrared methods are used. A probe reading should not be treated as an automatic diagnosis of overheating. The technician should compare the result with equipment specifications, ambient conditions, load level, and measurements from comparable components.
For electrical connections, temperature trends can be more informative than one isolated value. A loose termination may show a progressively higher temperature as load increases, while a naturally warm component may remain stable and within its design range. Thermal readings should be recorded with the load and ambient temperature because the same surface temperature can have different meanings under different conditions.
Before touching the instrument, determine what must be measured: current, voltage, resistance, frequency, temperature, or another quantity. Identify the source, load, conductor arrangement, nominal voltage, expected current, and possible stored energy. Review the equipment documentation and establish whether the circuit is AC, DC, or a combination of both.
This preparation prevents a common mistake: selecting a measurement function based on the physical appearance of the circuit rather than its electrical characteristics. A conductor may carry a waveform produced by an electronic converter, while a battery system may include both DC conductors and switching components. Correct identification is essential.
Define the diagnostic question before selecting the meter function. “Is the motor receiving supply voltage?” is different from “Is the motor drawing excessive current?” and both questions differ from “Is the winding insulation sound?” Each requires a different test strategy.
Examine the Extech EX900 for cracked housing, damaged insulation, loose controls, contamination, or signs of overheating. Test leads should have intact insulation, secure plugs, and undamaged probe tips. Do not use accessories that show exposed conductor material or questionable mechanical integrity.
Check the battery condition and verify that the display operates normally. If the meter shows a low-battery warning, replace the battery according to the manual rather than assuming that every function will remain within specification. Some meters can produce unstable or inaccurate readings when the battery is near exhaustion.
Operate the clamp trigger without connecting it to a conductor. The jaw should open and close smoothly, and the mating surfaces should meet without visible obstruction. Dirt, metal particles, or mechanical damage at the jaw can affect current measurement. Never insert tools or objects into the jaw mechanism to force it open.
Electrical measurement categories describe the environments in which test equipment is intended to withstand transient overvoltages. The correct category depends on where the measurement is made, such as a receptacle, a branch circuit, a distribution board, or equipment connected directly to a service installation.
Do not assume that a meter’s maximum voltage number alone determines suitability. The category rating, working environment, accessory rating, and applicable safety instructions must all be considered. If the installation exceeds the instrument’s category or voltage rating, use equipment designed for that environment.
Category markings apply to the complete measurement system. A meter with an appropriate rating can still become unsafe if it is used with poorly rated probes, damaged leads, improvised accessories, or an unsuitable adapter. Replacement accessories should meet or exceed the ratings required for the application.
Set the function before making contact with the circuit. If the expected value is unknown, begin with a suitable higher range where the meter design permits manual range selection. Verify whether the instrument uses automatic ranging and understand how the display indicates overload or polarity.
For clamp-current measurements, select AC or DC correctly. For voltage measurements, place the leads in the correct input terminals and choose the appropriate voltage function. For resistance, continuity, capacitance, or diode testing, ensure that the circuit is de-energized.
Do not change the rotary selector casually while the probes are connected to an energized circuit. If a function change is necessary, remove the probes safely first. The clamp itself may be removed from an energized conductor without opening the circuit, but the user should still follow the specific operating instructions and avoid unnecessary exposure.
Open the jaw and place it around one conductor only. Close the jaw completely and keep the conductor near the center when practical. Avoid clamping around a complete cable containing opposing conductors unless the measurement method specifically requires it.
For DC current, zero the instrument as instructed. Take note of the conductor direction if the meter indicates polarity. Repeat the measurement with consistent positioning if the reading seems unstable. When comparing phases, use the same procedure and account for changes in operating load.
Do not use the clamp to pull, push, or reposition a conductor. The jaw is a sensing mechanism, not a handling tool. If access is restricted, de-energize the equipment when possible and arrange the test in a way that does not compromise the conductor insulation or terminal connections.
Allow the display to settle before recording the value. Some circuits fluctuate naturally, particularly those controlled by thermostats, variable-speed drives, pulse-width modulation, or intermittent loads. In such cases, observe the reading over time and document the operating state.
Record the measured quantity, unit, function, range, circuit location, load condition, and time. A professional maintenance record should make it possible for another technician to repeat the test. One unexplained number has limited value; a consistent series of measurements can reveal trends and support a defensible conclusion.
If a result is unexpected, repeat the measurement using a logical verification process. Check the selected function, move the clamp to a known single conductor, compare with a similar circuit, and confirm the equipment operating condition. Avoid repeatedly testing the same uncertain setup without identifying what could be causing the discrepancy.
When the measurement is complete, remove the clamp from the conductor before changing the measurement function where appropriate. For lead-based tests, remove the probe from the energized circuit before changing terminals or functions. Switch the meter off and store it with the leads protected from damage.
After testing, return covers, barriers, and disconnected conductors to their correct positions. A measurement is not complete if the equipment is left in an unsafe or incomplete state. If a fault was found, identify the equipment clearly and follow the site’s reporting and isolation procedure.
Electrical safety takes priority over convenience. The Extech EX900 should be used only by a person who understands the hazards of the installation and the limitations of the instrument. The user should follow workplace procedures, applicable electrical codes, lockout and tagout requirements, and the manufacturer’s instructions.
Personal protective equipment does not make an unsafe test safe. It is one layer in a broader control strategy that includes planning, isolation where possible, suitable test equipment, safe approach boundaries, and competent personnel.
Arc-flash risk should be considered separately from shock risk. A clamp measurement may not require touching a conductor, but opening a panel or approaching exposed busbars can still expose the technician to an arc event. Site procedures may require an energized electrical work permit, a second qualified person, insulated tools, barriers, or additional protective equipment.
Never work alone where the employer’s procedure prohibits it. A second person does not replace safe technique, but may be required to summon assistance or operate emergency controls. Emergency planning should be completed before testing high-energy equipment.
| Measurement purpose | Typical Extech EX900 approach | Key condition | Interpretation note |
|---|---|---|---|
| AC load current | Use the AC clamp-current function around one conductor. | Conductor must fit fully inside the closed jaw. | Compare the result with the equipment rating and operating load. |
| DC current | Use the DC clamp-current function and zero the meter as required. | Watch for polarity, external magnetic fields, and jaw-position effects. | Repeat the reading if the value changes significantly with positioning. |
| Supply voltage | Use the appropriate AC or DC voltage function with rated leads. | Connect in parallel and remain within category and voltage limits. | Compare with nameplate data, diagrams, and expected operating conditions. |
| Continuity | Use the continuity function on an isolated circuit. | Verify absence of voltage and discharge stored energy first. | A tone indicates a low-resistance path, not full circuit performance. |
| Resistance | Use the resistance function across the de-energized component or path. | Separate parallel paths where they could affect the result. | Lead resistance and contact quality may influence low readings. |
| Capacitance | Use the capacitance function on a safely discharged component. | Disconnect the component when in-circuit connections may interfere. | Compare with the component tolerance and application requirements. |
| Frequency | Use the frequency function on a suitable AC or pulse signal. | Signal amplitude and waveform must fall within the manual’s limits. | Frequency alone does not describe waveform quality. |
| Temperature | Connect a compatible probe and allow the reading to stabilize. | Use the approved probe and account for surface and ambient conditions. | Compare with equipment specifications and comparable components. |
Accuracy and resolution are different properties. Resolution describes the smallest displayed increment, while accuracy describes how close the reading is expected to be to the actual value under stated conditions. A display with many digits does not automatically provide high accuracy.
Measurement specifications are commonly expressed using a percentage of reading plus a number of display counts. The percentage term changes with the measured value, while the counts term reflects the display resolution. Temperature, battery condition, conductor position, frequency, and electromagnetic interference can also affect practical results.
Repeatability is often more useful in maintenance than a single highly precise reading. If the same circuit produces consistent measurements under repeatable conditions, the technician has a stronger basis for comparison. When comparing phases or similar machines, use the same meter, function, conductor position, and operating state.
Calibration is another consideration. A professional instrument should be maintained according to the user’s quality system and the consequences of measurement error. Calibration intervals are not universal; they depend on usage frequency, environmental exposure, required confidence, previous performance, and organizational policy. Calibration should be performed by a competent service provider using traceable equipment where traceability is required.
Environmental conditions can be especially important. A meter used in a cold outdoor installation may respond differently from one used in a controlled workshop. Condensation, dust, vibration, and strong electromagnetic fields can also influence reliability or shorten service life. When results are critical, allow the instrument to reach the recommended operating environment before testing.
A clamp meter can help establish whether a motor is drawing current on each phase and whether the measured load changes during startup or operation. The Extech EX900 may be useful for comparing phase currents, checking a suspected overload, and observing the effect of mechanical changes.
Unequal current does not identify a single fault. The technician should also inspect supply voltage, terminal tightness, overload settings, mechanical coupling, bearings, ventilation, and operating conditions. Inrush current may require a meter function specifically designed to capture the relevant starting event. If the motor is controlled by a drive, the waveform and measurement location become especially important.
Current imbalance can produce heating in motor windings even when the average current appears acceptable. For that reason, phase-to-phase voltage should be checked and the current measurements should be made at the same point in the circuit. A motor may also draw less current than expected because it is unloaded, mechanically disconnected, or suffering from a supply interruption.
DC clamp measurement can help assess charging current, discharge current, and load behavior in battery-backed systems. The measured value should be associated with the battery’s state of charge, temperature, connected loads, charging stage, and cable arrangement.
A current reading cannot determine battery health by itself. Capacity testing, internal-resistance assessment, charging-system checks, and manufacturer procedures may be required. When measuring large battery systems, arc hazards and high fault currents must be taken seriously even when the nominal voltage appears moderate.
When measuring a battery bank, identify whether the clamp is around the positive or negative conductor and note the direction indicated by the meter. Avoid placing the clamp around both conductors of a two-wire battery circuit because the fields may cancel. Also be alert to nearby magnetic materials and busbars that can affect low-current readings.
Heating elements and other resistive loads often draw relatively stable current once operating temperature is reached. A clamp measurement can be compared with the expected current derived from the equipment’s rated voltage and power. If the reading is unexpectedly low, the circuit may be partially open, under-voltage, thermostatically controlled, or not fully energized.
The relationship between voltage, current, and power should be applied carefully. Real systems may include power-factor effects, switching controls, or multiple elements. A clamp meter reading is not automatically a direct measurement of true power unless the instrument is specifically designed for power analysis.
In distribution work, the Extech EX900 can support load surveys and preliminary fault investigation. The technician may record feeder current at different times, compare phases, and identify circuits that appear heavily loaded. Such readings can inform further engineering review.
Panel work requires particular attention to approach boundaries, exposed energized parts, probe positioning, and the meter’s category rating. The clamp should be used from a stable stance, with a clear escape path and no unnecessary movement near energized components.
Load surveys are most useful when performed over a representative period. A single daytime reading may miss overnight heating, peak production demand, refrigeration cycles, or intermittent process equipment. If the instrument does not provide data logging, technicians can make scheduled readings and record the time, weather, production level, and other factors that may influence the load.
Clamp measurements can support diagnosis of compressors, condenser fans, evaporator fans, pumps, and electric heaters. Comparing current with the equipment nameplate value can help identify an overloaded motor, a missing phase, a restricted system, or a control problem.
HVAC current is affected by ambient temperature, refrigerant conditions, pressure, airflow, compressor operating mode, and defrost cycles. The technician should not interpret a current value without considering these conditions. Electrical measurements should be combined with pressure, temperature, airflow, and manufacturer diagnostic procedures.
No clamp meter can eliminate the need for electrical judgment. The Extech EX900 may provide a correct measurement of the quantity it is designed to measure, yet that quantity may not answer the diagnostic question. For example, current can be normal while insulation is deteriorating, a mechanical coupling is misaligned, a control signal is intermittent, or a connection is heating only during a brief event.
Clamp meters also have practical limits related to conductor size and geometry. Large conductors may not fit within the jaw. Closely spaced conductors can influence the magnetic field. Parallel conductors may divide current unevenly, and the clamp may capture only the conductor enclosed by the jaw. External fields from adjacent circuits can affect sensitive readings, particularly in crowded panels.
Electronic loads present additional challenges. High crest factor, rapidly changing waveforms, switching noise, and frequencies outside the instrument’s stated range can reduce confidence. If the measurement is important for design validation, compliance, commissioning, or a dispute, use a specialized analyzer or a calibrated reference instrument appropriate to the task.
Very low current readings may be difficult to obtain accurately with a large-current clamp because the measured signal represents only a small portion of the instrument’s range. If precision at low current is important, a smaller clamp, a current probe, or a dedicated low-current instrument may be more appropriate.
Some conductors cannot be separated safely from a cable assembly. In that situation, do not cut, strip, or disturb the cable simply to obtain a clamp measurement. Use a purpose-built split-core accessory, a test point, or another method approved by the equipment manufacturer and site safety procedure.
Keep the Extech EX900 clean and dry. Wipe the housing with a suitable slightly damp cloth when necessary, following the manufacturer’s cleaning recommendations. Avoid solvents or abrasive materials that could damage labels, insulation, or the display.
Store the meter in a protective case when it is transported between sites. Do not leave it in direct sunlight, a hot vehicle, excessive humidity, or an environment containing conductive dust. Remove the battery for long-term storage if the manufacturer recommends doing so, particularly where leakage could damage the instrument.
Test leads should be coiled without sharp bends. The clamp jaw should be kept free of dirt and forced objects. If the jaw does not close smoothly or the hinge becomes loose, remove the instrument from service until it has been inspected.
Documentation should remain with the meter or be available through the organization’s equipment-control system. Record calibration status, inspection dates, repairs, and any measurement issue that could affect future use.
Before returning the meter to service after a drop, overload, or exposure to moisture, perform a careful inspection. A meter can appear functional while its internal protective components have been compromised. If there is any doubt about the condition of the instrument, have it evaluated by an authorized service provider.
The Extech EX900 can be a strong choice when a technician needs one portable instrument for current and general electrical checks. Before purchase or assignment, assess the following factors:
A specialist working mainly on motor drives may need a motor analyzer or power-quality instrument in addition to a clamp meter. An electrician performing general service work may prioritize safety category, current capacity, display clarity, and dependable lead accessories. A laboratory or commissioning team may require documented calibration and higher measurement confidence than a routine maintenance application.
Ergonomics should also be considered. A meter that is technically capable but difficult to operate while wearing gloves, standing on a ladder, or working in a crowded enclosure may not be the best tool for a particular environment. Controls should be easy to identify, the display should be readable, and the clamp should be manageable without excessive force.
Industry professionals typically avoid making a diagnosis from one reading. Instead, they form a test plan and compare observations. A useful sequence might include confirming the circuit identity, measuring supply voltage, checking current under a known load, comparing similar phases or components, and repeating the test under changed conditions.
For example, if a pump appears to be overloaded, a technician could record voltage and current while the pump is idle, starting, and operating at normal flow. The technician might then compare phase currents, inspect mechanical conditions, and review the pump’s rated data. The Extech EX900 could contribute valuable measurements, but the conclusion would come from the complete evidence rather than from the clamp reading alone.
Documentation improves technical decisions. Record the instrument identification, measurement function, range, location, environmental conditions, equipment state, and result. If a reading is unstable, document the variation rather than choosing a convenient number. Clear records support maintenance planning and make later comparisons meaningful.
Trend analysis is particularly useful. If a motor normally draws 12 amperes and gradually rises to 15 amperes under the same production conditions, the change may be more significant than the absolute number alone. Repeated measurements can reveal bearing wear, filter blockage, mechanical friction, process changes, or a developing electrical problem before a protective device operates.
The primary source for the Extech EX900’s exact specifications is the manufacturer’s model documentation supplied with the instrument. Users should verify current ranges, accuracy statements, frequency limits, jaw capacity, safety category, environmental limits, battery requirements, included probes, and accessory compatibility from that documentation.
Electrical safety practices should also be aligned with the requirements adopted by the relevant workplace and jurisdiction. Depending on the application, useful reference frameworks may include manufacturer safety instructions, national electrical codes, workplace electrical-safety rules, and recognized standards for test instruments and measurement categories. The applicable edition and local adoption should always be confirmed rather than assumed.
Where measurement results are used for compliance, acceptance testing, engineering decisions, or safety-critical maintenance, the organization should define its calibration, competency, documentation, and review requirements. A general product description is not a substitute for the controlled procedures used in those environments.
Online specifications should be treated cautiously when they conflict. Retail pages may combine information from several related products, and images may show accessories that are not included with every package. Confirm the exact model number, serial information, manual revision, and rating labels before planning a measurement.
| Requirement | Why it matters | Action before measurement |
|---|---|---|
| Known circuit type | AC, DC, and electronic waveforms require different settings and interpretation. | Review diagrams, labels, and operating information. |
| Suitable measurement category | Transient exposure varies between low-energy electronics and distribution systems. | Confirm the meter and accessories are rated for the location. |
| Intact test equipment | Damaged insulation or housing can expose the user to hazardous voltage. | Inspect the meter, jaw, leads, probes, and battery compartment. |
| Correct conductor selection | Enclosing multiple opposing conductors can cancel the magnetic field. | Clamp around one intended conductor and close the jaw fully. |
| De-energized circuit for passive tests | Resistance and capacitance functions are not intended for live circuits. | Isolate, verify, and discharge before connecting the leads. |
| Stable operating condition | Changing loads can make a normal reading appear inconsistent. | Record the equipment state and observe fluctuations over time. |
| Qualified operator | Instrument operation does not replace electrical training. | Follow workplace authorization and safety procedures. |
| Clear test objective | A correct measurement can still be irrelevant to the fault being investigated. | Decide what result will confirm, reject, or refine the working diagnosis. |
| Safe access | Restricted spaces increase the chance of accidental contact or dropped tools. | Establish stable footing, adequate lighting, and a controlled approach. |
The Extech EX900 is used primarily for clamp-based AC and DC current measurement and general electrical troubleshooting. Depending on the exact model documentation, it may also support voltage, resistance, continuity, diode, capacitance, frequency, duty-cycle, temperature, and inrush-related measurements. Confirm the functions and limits on the specific unit before use.
The model is generally identified as a True RMS clamp meter. True RMS capability is useful for many non-sinusoidal AC signals, but accuracy still depends on frequency, crest factor, waveform, range, and other conditions stated by the manufacturer. True RMS does not make the instrument a complete power-quality analyzer.
The Extech EX900 is commonly associated with DC current measurement. DC clamp readings should be zeroed as instructed, taken around one conductor, and checked for polarity and positioning effects. Users should verify the available DC range and accuracy in the applicable manual.
Only if the cable contains the single conductor required by the measurement method. If a cable contains both outgoing and returning conductors, their magnetic fields may cancel and produce an incorrect result. When possible, clamp around one conductor only.
No. Resistance, continuity, capacitance, and diode tests should be performed only on isolated circuits that have been verified as de-energized and discharged. Measuring an energized circuit in these modes can damage the instrument and create a serious hazard.
A current and voltage reading can support basic electrical calculations, but that is not necessarily the same as measuring true power. Real power may depend on phase angle, waveform distortion, and simultaneous voltage-current sampling. Use a meter or analyzer specifically designed for power measurement when that information is required.
Possible causes include zero offset, conductor position, residual magnetism, external magnetic fields, nearby conductors, or unstable load current. Close the jaw completely, zero the instrument as directed, center the conductor, and repeat the measurement. If the behavior remains abnormal, compare it with a suitable reference instrument or arrange inspection.
It may support an inrush or peak-related function, depending on the exact model version and documentation. Starting-current measurements require careful timing and an understanding of the motor’s starting method. Confirm that the function is intended for the application and that the circuit remains within the instrument’s limits.
There is no single interval suitable for every user. The appropriate schedule depends on usage, environmental exposure, required accuracy, previous calibration results, and organizational policy. A workplace quality system or competent calibration provider should establish the interval.
Remove the instrument from the circuit safely and reassess the selected function, range, connection, and expected value. Do not continue testing while the reading exceeds the instrument’s limit. Confirm that the circuit and accessories are within the documented ratings before attempting another measurement.
Suitability depends on the installation voltage, measurement category, transient environment, operator qualifications, and the exact ratings of the meter and accessories. A general clamp-meter description is not enough to approve a high-energy measurement. Follow the instrument manual and the site’s electrical-safety procedure.
No. A standard multimeter’s resistance function is not a substitute for an insulation resistance tester. Insulation testing uses a controlled test voltage and specialized measurement method. Use the equipment specified by the installation or equipment manufacturer.
Use the same conductor position, range, function, and operating state for repeat measurements. Keep the jaw fully closed, center the conductor when practical, zero DC measurements as required, and allow the display to stabilize. Record fluctuating values honestly rather than selecting only one convenient result.
Check whether the equipment is actually operating under load. A thermostat, interlock, variable-speed controller, open phase, blown element, low supply voltage, or unloaded motor can all produce a lower-than-expected current. Confirm voltage and operating state before concluding that the clamp meter is inaccurate.
Some difference may result from normal load characteristics, but substantial imbalance can indicate supply imbalance, unequal loading, wiring problems, motor faults, or measurement inconsistency. Measure all phases under the same conditions and compare the results with the equipment manufacturer’s limits.
The Extech EX900 is best understood as a versatile clamp meter for electrical measurement and troubleshooting. Its value lies in combining non-invasive current measurement with a broader set of diagnostic functions, while True RMS capability can support more representative readings on many modern electrical loads.
Its usefulness ultimately depends on disciplined application. The user must select the correct function, understand the circuit, clamp the proper conductor, respect measurement-category limits, and interpret readings in context. Maintenance teams should also maintain the meter, inspect its accessories, document significant results, and arrange calibration according to the risk and accuracy requirements of their work.
For general electrical service, motor checks, battery-system observations, building maintenance, HVAC inspection, and preliminary fault investigation, the Extech EX900 may provide a practical combination of capability and portability. For specialized power-quality, insulation, earth-resistance, waveform, or compliance tasks, it should be supplemented with equipment designed for those specific measurements.
The most effective way to use the instrument is as part of a structured diagnostic process. Establish the expected value, choose a safe and suitable measurement method, obtain repeatable readings, compare those readings with technical information, and investigate abnormal results through additional tests. A clamp meter is powerful because it gives fast access to important electrical information, but professional judgment determines what that information means.
That balanced approach allows the Extech EX900 to serve as a reliable part of a broader professional testing toolkit. Used within its documented limits and supported by appropriate safety procedures, it can reduce unnecessary circuit disruption, improve troubleshooting efficiency, and provide useful evidence for maintenance and repair decisions.
